--常用微波陶瓷材料一览表 |
| |
材料编码 |
介电常数 |
品质因素 f*Q |
频率温度特性 |
比重 |
| |
MST-12 |
12.0 ± 0.3 |
≥150,000 |
-50 ± 5 |
3.6 |
| |
MTC-13 |
12.8 ± 0.2 |
≥60,000 |
0 ± 5 |
--- |
| |
MST-16 |
16.0 ± 0.3 |
≥60,000 |
0 ± 4 |
3.9 |
| |
BCT-21 |
21.0 ± 0.3 |
≥60,000 |
0 ± 3 |
3.8 |
| |
BMT-24 |
24.0 ± 0.3 |
≥200,000 |
0 ± 2 |
7.5 |
| |
MLT-26 |
26.0 ± 0.3 |
≥60,000 |
0 ± 3 |
4.0 |
| |
BZN-32 |
32.0 ± 0.3 |
≥70,000 |
2 ± 3 |
5.8 |
| |
BZT-35 |
35.0 ± 0.5 |
≥50,000 |
1 ± 3 |
4.6 |
| |
ZST-38 |
39.0 ± 0.5 |
≥55,000 |
0 ± 2 |
5.0 |
| |
ZNT-45 |
45.0 ± 0.5 |
≥40,000 |
0 ± 2 |
4.8 |
| |
|
|
|
|
|
|
|
--常用微波铁氧体材料一览表 |
| |
材料编码 |
饱和磁强 |
最大线宽 |
介电常数 |
介质损耗 |
居里温度 |
| |
YG-1780 |
1,780 |
30 |
15.0 |
＜2.0*10^-4 |
280 |
| |
YG-1800 |
1,800 |
15 |
15.4 |
＜1.5*10^-4 |
280 |
| |
NG-1850 |
1,850 |
12 |
14.8 |
＜2.0*10^-4 |
214 |
| |
NG-1950 |
1,950 |
12 |
15.2 |
＜2.0*10^-4 |
250 |
| |
NF-2100 |
2,100 |
220 |
12.0 |
＜15*10^-4 |
530 |
| |
NF-2300 |
2,300 |
220 |
12.5 |
＜15*10^-4 |
530 |
| |
NF-2500 |
2,500 |
220 |
13.0 |
＜15*10^-4 |
530 |
| |
NF-3000 |
3,000 |
130 |
13.0 |
＜15*10^-4 |
510 |
| |
|
|
|
|
|
|
 |

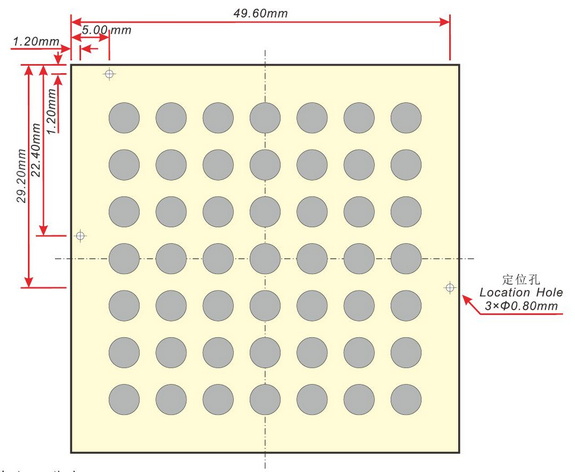

定位孔设计规范 |
| |
 |
| |
|
|
|
|
|
|
|

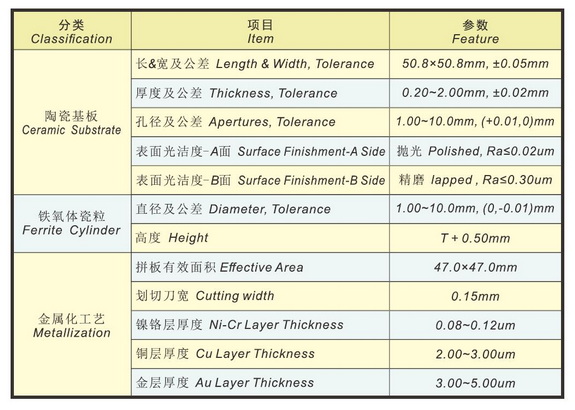

工艺参数一栏表 |
| |
 |
| |
|
| |
|
